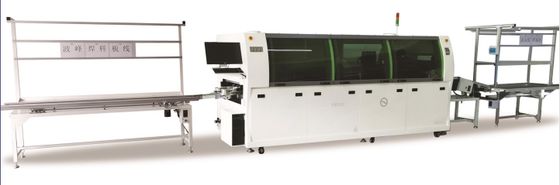

This advanced lead-free dual wave soldering machine features PLC touchscreen control, two-stage hot air heating, and automatic titanium claw cleaning. Designed for precision PCB soldering with maximum efficiency and minimal waste.
| Model | Lead-Free Dual Wave Soldering Machine HR-S1825M |
|---|---|
| Configuration | Touchscreen Control Two-Stage Hot Air Heating Dual Wave Peaks Automatic Titanium Claw Cleaning, Electric In-and-Out of Solder Pot Spray Oscillation: Stepper Motor |
| Number of Wave Peaks | 2 Wave Peaks |
| Maximum Board Width | Max 250mm |
| Solder Pot Capacity | 200KG |
| Preheating Length | 800mm (Two Stages) |
| Wave Peak Height | 12mm |
| Component Lead Length on Board | 10mm |
| PCB Transportation Height | 750±20mm |
| Total Power | 11KW |
| Power Supply | 3-Phase 5-Wire System, 380V 50HZ |
| Control Method | Touchscreen |
| Rack Dimensions | 1800×1200×1500mm |
| Overall Dimensions | 2600×1200×1600mm |
| PCB Transportation Speed | 0-1.8 m/min |
| Preheating Zone Temperature | Room Temperature - 180°C |
| Heating Method | 100% Hot Air |
| Cooling Method | Axial Fan Cooling |
| Solder Pot Temperature | Room Temperature - 300°C |
| Transportation Direction | Left -> Right |
| Temperature Control Method | PID + SSR |
| Overall Machine Control Method | Mitsubishi PLC + Touchscreen |
Before powering on: Verify power rating, proper grounding, and secure electrical connections.
National high-tech enterprise specializing in SMT equipment R&D, production, and sales. Serving top 500 electronic companies worldwide with registered capital of 5 million. Our experienced technical team focuses on innovation to meet diverse customer needs through valuable services.
A: We guarantee rigorous testing of every machine before delivery to ensure excellent performance.
A: Engineers can train at our facility or easily learn through provided training videos and user manual included with the machine.
A: We fully support free customized logo service - just provide your requirements.
A: No, most clients learn operation within 2 days.
